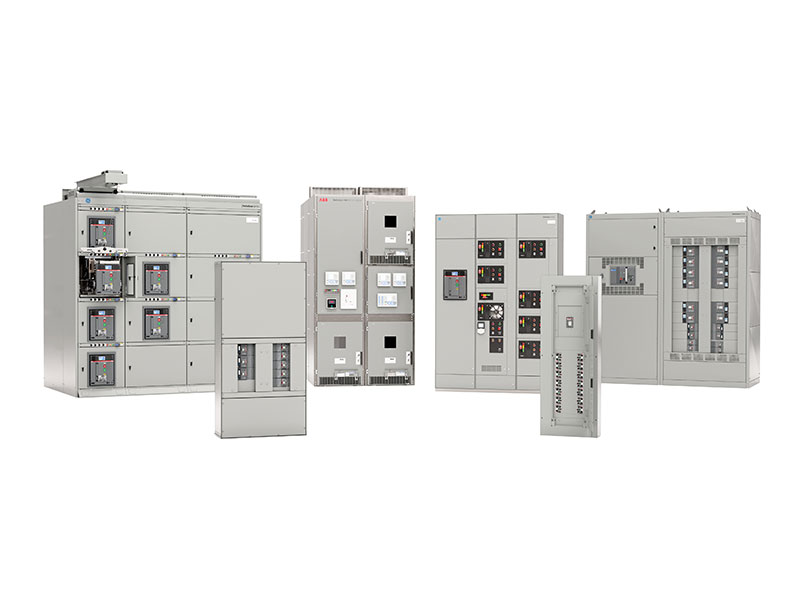

Baja Tensión NEMA/ANSI

ReliaGear Switchboard

• Nominal Voltage: 480/ 600V
• Nominal Current: up to  4000A @600V
• Interruptive Capacity:
• 150kIAC@480V, 100kIAC@600V
• Standard  UL891
• Enclosures NEMA 1/NEMA 3R
• Spring-loaded circuit breaker plug-in connectors  Finger-safe bus stack that meets IP20 standards

PowerBreak II Switchboard

• Nominal  Voltage:  480/ 600V
• Nominal Current:  up to  6000A ( Main & Ties)
• Interruptive Capacity: 150kIAC @480V,  100KA @600V.
• Standard UL891
• Rugged Construction: Bus designed to withstand the damaging effects of a  short circuit for  at least 30 c.
• Rear  access  Switchboard

Spectra Busway

• Sandwich Style Busway up to 600V
• Material: Cooper 225- 6000A Aluminum 225-5000A
• Short Circuit Ratings up through 200kA for 3 cycles
• Indoor , Drip-Proof IP43, Splash – Proof IP54,
• Outdoor Type  IP65,IP66.
• Standard UL857,NEMA BU-1,  CSA
• Less expensive to install and easier to replace than cable  and conduit.

ReliaGear Switchgear

• Nominal Voltage: 480/ 600V
• Nominal Current: Main bus: up to 8000 A /ACB: 250–5000 A
• Interruptive Capacity: 100kA
• Non-arc resistant
• UL1558 and CSA C22.2 No.31 compliant
• Enclosures: NEMA Type 1 and 3R
• Cutting-edge Emax 2 ACB with Ekip trip unit technology, integrated into the  proven AKD evolving switchgear platform

MNS SG Switchgear

• Nominal  voltage: 208/240/480/600V
• Nominal current: 2000/ 3200/ 4000A
• Maximum Short circuit capacity CC: 65/100kA
• Air circuit breakers
• Plenum and plenum less design available
• Arc resistance according C37.20.7 standard, type
• 2B accessibility.

ReliaGear Motor Control Center

• Nominal  Voltage:  480/600V
• Main Busbar: 600- 3200A
• Short Circuit Rating: 100kIAC @480V/ 65kIAC @600V
• Starters units  Plug-in  type up to  Nema size 5 and
•  Feeders  up to  600A
• Variable Frequency drives  ACS580 up to  500HP
• Enclousures   Nema Type 1, 1G, 2,3R, 12
• Standard  UL845

MNS Motor Control Center

• Nominal Voltage: 208/240/480/600V
• Nominal Current:  800/ 2500 A
• Short circuit Rating: 65KA
• Full withdrawable units for arc prevention.
• Multifunction wall design  provides Fault Free Zone with a touch safe IP 20 rating − Bus Shutters are not required
• Enclosure NEMA 1
• Variable Frequency drives  ACS880 up to  300HP
• Standard UL845
• Arc Resistance according IEEE C37.20.7  type  2B- Plenum less design
