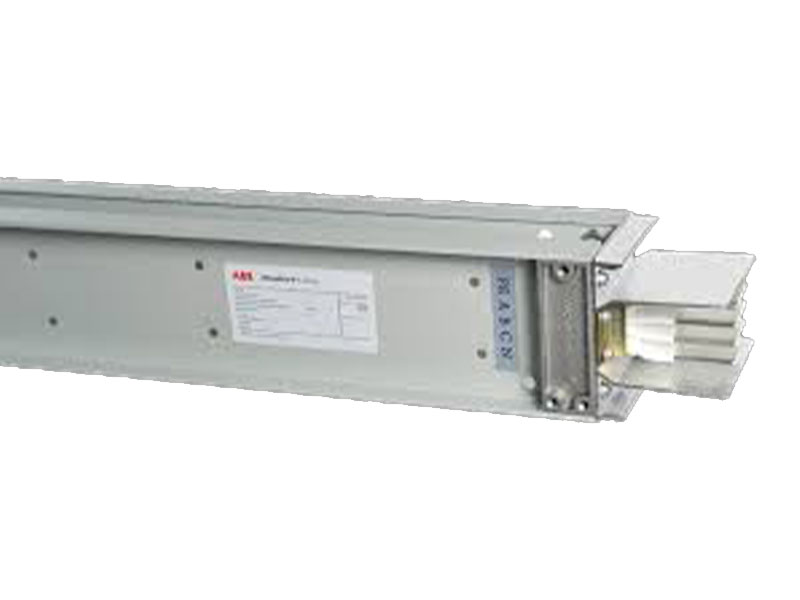

Ducto Barra Baja Tensión

WavePro-II Busway

• Standard: IEC 61439-1 2011, IEC 61439-6 2012
• Certificates: KEMA KEUR certification
• Icw:               30kA~100kA
• Ui/Ue:           1000V / 1000V
• IP Rating:        IP41, IP54, IP65 (Feeder);  IP41, IP54 (Plug-in)
• Frequency:    50Hz / 60Hz
• Busway service:
  • L1+L2+L3+50% Housing ground
  • L1+L2+L3+100%N+50% Housing ground
  • L1+L2+L3+100%N+50% Internal ground
  • L1+L2+L3+200%N+50% Housing ground
• Rated Current:
  • 400A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 4000A, 5000A
• Tap off unit:
  • Rating: 16A~160A,  200A~250A, 400A~500A, 630A, 800A~1000A
  • MCCB: ABB Tmax, Tmax XT
