Breakmaster Load Interrupter Switch
- Nominal Voltage: 5 /15 KV
- Interruptive Switch Mechanism : 40/ 61kA
- Nominal Current : 600 / 1200A
- Indoor and Outdoor applications ( NEMA 1, NEMA 3R)
- Standard ANSI C37.20.3 ( Metal -Enclosed SWGR)
- UL labeled for the main configurations.
- ATS Option available
- Used mainly as a primary or secondary disconnect switch for transformers, providing a dependable, economical option for load switching and protection.

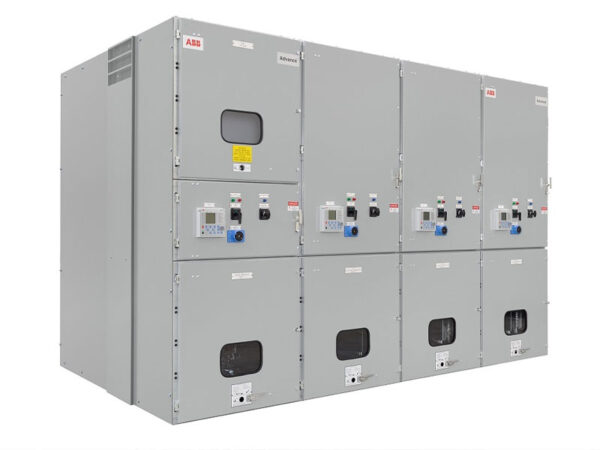

Advance Medium Voltage Switchgear
- Nominal Voltage: 5/8.25/15/27KV
- Rated Continuous Current : 1200/2000/3000/4000A
- Interrupting Rating : Up to 50kA
- Certifications: C37.20.2-1993 ( Metal- Clad SWGR), UL. CSA
- Non- Arc Resistance
- Removable vacuum interrupters, with magnetic or
- conventional spring actuator mechanism.
- Indoor and Outdoor applications acc. ANSI C37.20.2 One High and two High configurations available
Safegear Medium Voltage Switchgear
- Nomical Voltage: 5/8.25/15kV
- Rated Continuous Current: 1200/2000/3000/4000A
- Interrupting Rating: UP to 63 KA
- Certifications:C37.20.2 ( Metal –clad SWGR) UL. CSA
- Arc Resístance Type 2B/2C according C37.20.7 – 2007
- Removable vacuum interrupters, with magnetic or conventional spring actuator mechanism.
- Smallest footprint in the Market Suitable for Indoor applications
- Suitable for Indoor applications
Limitamp Motor Control Center
- Nominal Voltage: 2.4 / 7.2KV
- Nominal Current: up to 3000A
- Contactors Rating: 400 / 800A ( Vacuum Type)
- Symmetric Short Circuit: 50KA
- One High and Two High arrangement available (400A)
- Enclosures NEMA 1 ,1A,2,3R,12
- Designed to meet NEMA ICS 3, Part 2 and UL 347 requirements
- Full range of motor control options – FVNR, FVR, RVAT, RVPR, Soft Starters ( Up to 5KV)
- Arc Resistance ( optional) according IEEE C30.20.7 type 2B
Safegear Motor Control Center
- Nominal Voltage: 7.2KV
- Nominal current l: 1200/2000/3000 A
- Symmetric Short circuit: 50kA
- One and two-high construction (400A & 720A) ideal for small spaces.
- Fully compliant with CSA & UL 347
- Meets the IEEE C37.20.2 for metal-clad switchgear construction , Type 2B arc resistance accessibility as per IEEE C37.20.7 , increasing security for operators.
- SmartRack™ remote racking system for contactors as well as PTs
